Views: 0 Author: Alfredturbo Publish Time: 2026-01-15 Origin: Site

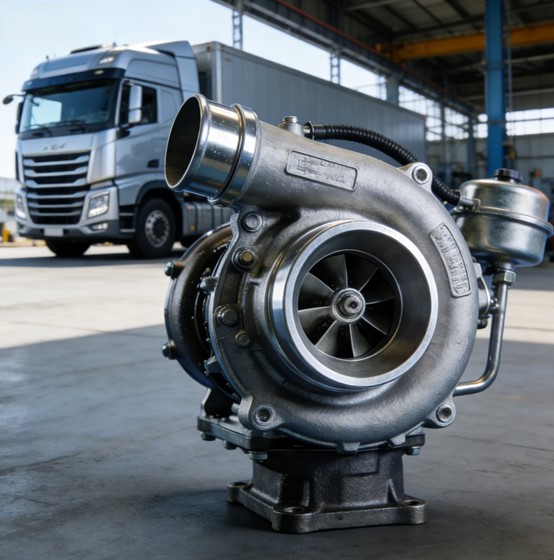

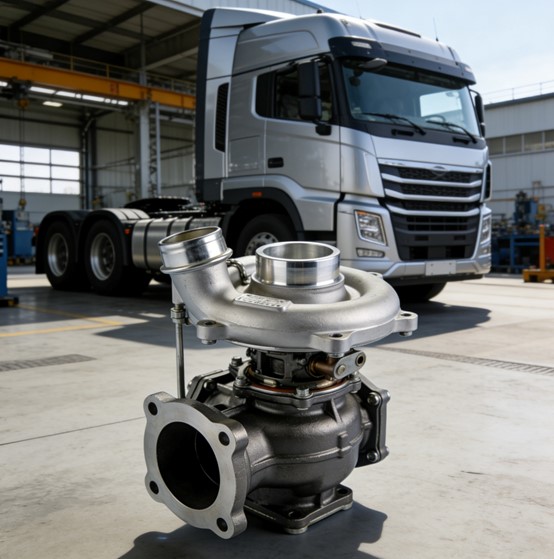

A truck turbochargeris a core supercharging device adapted to heavy-duty truck engines, and a key component of the forced air intake system. Its function is to boost engine power output, fuel efficiency, and emission performance. It is specifically designed for heavy-duty operating conditions of heavy trucks, such as full-load transportation, climbing, and long-distance high-speed driving.
Its working principle is to utilize the high-temperature and high-pressure exhaust gas discharged by the engine to drive the impeller at the turbine end to rotate at high speed. The impeller at the compressor end, which is coaxial with the turbine, rotates synchronously to compress the outside air and deliver it into the engine cylinders. The compressed air has higher oxygen content, which enables more sufficient combustion of fuel in the cylinders. Thus, without significantly increasing engine displacement, it greatly enhances the engine's rated power and torque to meet the power demand of heavy trucks for heavy-haul transportation.
Compared with passenger car turbochargers, truck turbochargers typically have the following characteristics:
Impellers and casings are made of high-strength materials such as nickel-based superalloys and titanium alloys, which can withstand the continuous high-temperature and high-pressure environment under heavy-duty operating conditions.
Most are equipped with an oil-water dual cooling system to avoid bearing overheating and burnout during long-term high-load operation.
Optimized for the characteristics of large-displacement diesel engines of heavy trucks in terms of boost pressure and air flow parameters, ensuring stable and linear power output.
This is the core prerequisite. The turbocharger model, boost pressure range, and flow characteristics must be accurately matched to the truck engine's displacement, rated power, and torque curve. Inadequate compatibility can lead to weak power output, soaring fuel consumption, and even engine knock, overheating, and other faults. Priority should be given to turbo products that match the engine's original factory calibration or have been verified through professional bench tests. Alfredturbo has long-term supporting cooperation with mainstream domestic vehicle and engine manufacturers, providing OEM-level adaptation solutions with precise data.
Heavy trucks operate under high-intensity conditions such as climbing, full-load driving, and idle start-stop for a long time, so the turbocharger must have excellent fatigue resistance. Focus on the material of the turbo impeller (preferably nickel-based superalloys and titanium alloys), bearing structure (floating bearings/ball bearings; the latter has stronger impact resistance), and dynamic balance accuracy. At the same time, confirm whether the product has undergone rigorous durability tests (such as thermal cycle shock tests and overspeed destruction tests).
The temperature of the turbocharger casing can reach several hundred degrees under heavy-duty conditions, so good heat dissipation is the key to avoiding premature turbo aging. It is necessary to consider the turbocharger's cooling method (oil-water dual cooling is superior to single oil cooling) and casing heat dissipation structure design; at the same time, confirm whether the lubrication interface matches the original vehicle's oil pipeline to prevent bearing burnout caused by insufficient oil supply or poor oil return.
Fuel cost is one of the core operating costs of heavy-duty fleets. High-quality turbochargers should optimize the aerodynamic design of the compressor impeller to achieve high boost pressure at low rotational speeds, improve engine low-speed torque, reduce throttle opening during starting and climbing, and thereby lower comprehensive fuel consumption. You can request suppliers to provide fuel consumption comparison test data for the same vehicle model.
It must strictly comply with national or regional emission standards. As a key component of engine emission control, the turbocharger design must work in conjunction with the after-treatment system to ensure that the exhaust gas recirculation (EGR) efficiency meets standards, avoiding vehicle restrictions or penalties due to excessive emissions.
Heavy-duty fleets have a wide distribution of vehicles and high attendance rates, so the after-sales response speed of turbochargers is crucial. Three points need to be paid attention to: first, the warranty period (it is recommended that the warranty period for new turbochargers is not less than 18 months or 200,000 kilometers); second, the localized service network to ensure that faulty turbochargers can be quickly inspected, repaired, or replaced; third, whether 24-hour technical support is provided to solve sudden boost abnormality problems.
Priority should be given to OEM-positioned design turbochargers, which can directly replace the original vehicle components without additional pipeline cutting, welding, or bracket modification, reducing installation man-hours and modification risks. If customized modification is required, confirm whether the supplier provides complete installation drawings and adapted accessories.
Pay attention to the warranty period and coverage (whether it includes consequential damage). Alfredturbo provides a 6-month warranty period. Its products have passed the national quality management system and environmental management system certifications, and strictly implement the quality standards of original equipment manufacturer (OEM) supporting products. Every link of the turbocharger, from the production of the first component to vehicle installation and use, is strictly controlled to ensure that the product reaches the total service life of the engine.
Heavy-duty fleet vehicles have high maintenance frequencies, so the operation and maintenance convenience of turbochargers directly affects downtime. It is necessary to consider the difficulty of turbocharger disassembly and assembly, the availability of wearing parts (such as sealing rings and bearings), and whether it supports rapid detection (such as judging turbo wastegate faults through fault codes).
Do not focus solely on the purchase price of the turbocharger. Instead, comprehensively calculate the total cost of ownership, including purchase cost, fuel consumption cost, maintenance and repair cost, and downtime loss cost. Low-priced and inferior turbochargers may have a low purchase cost, but their high failure rate and high fuel consumption will increase the total operating cost of the fleet in the long run.
