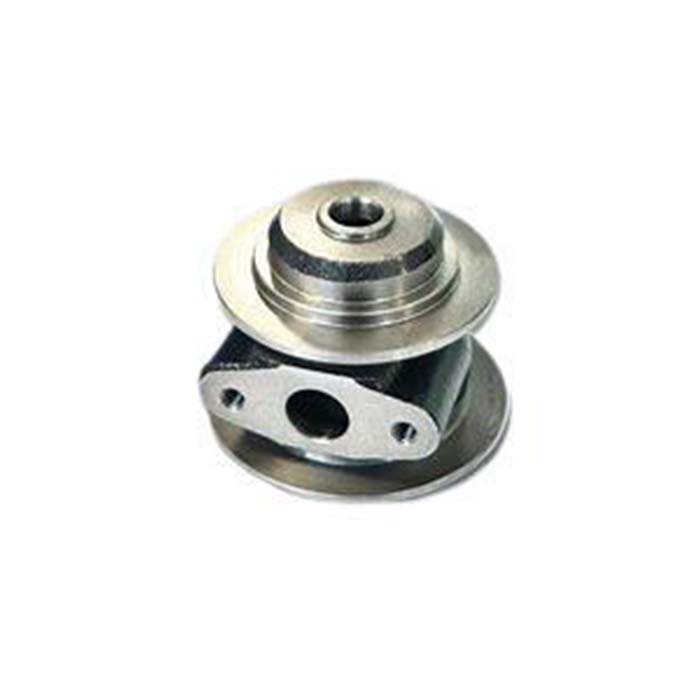

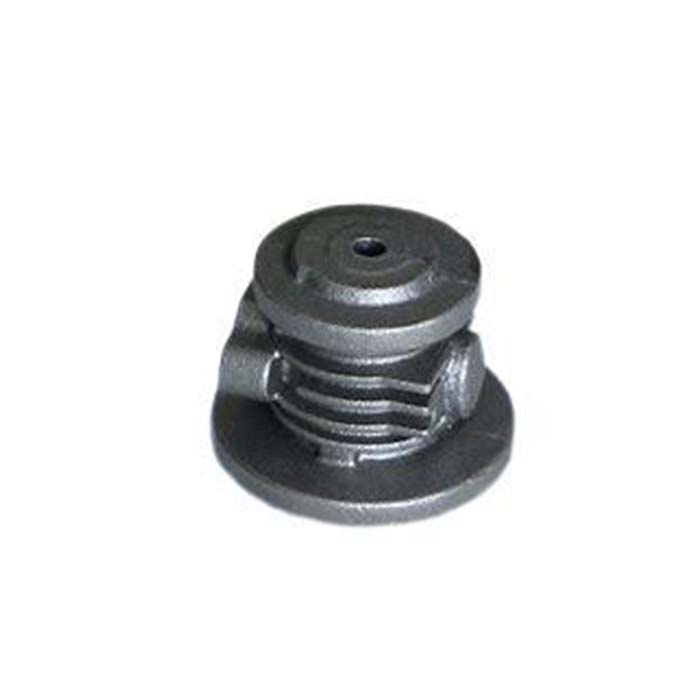

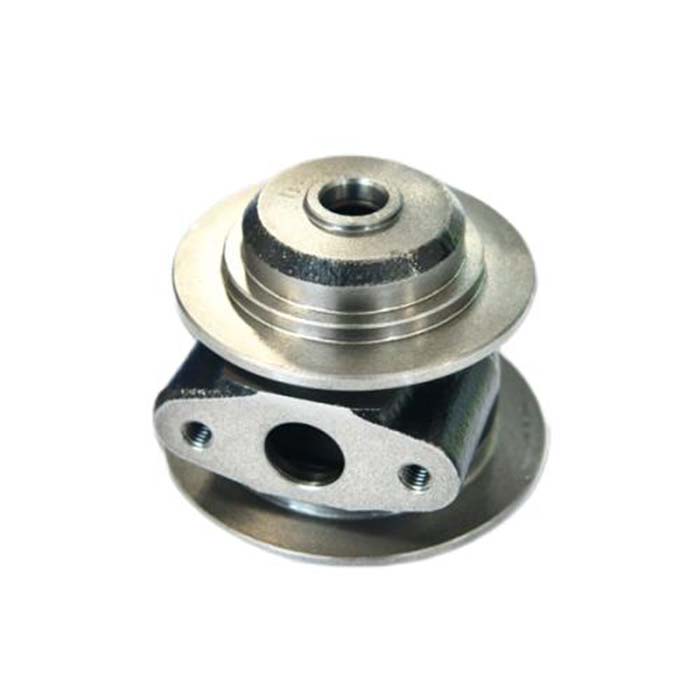

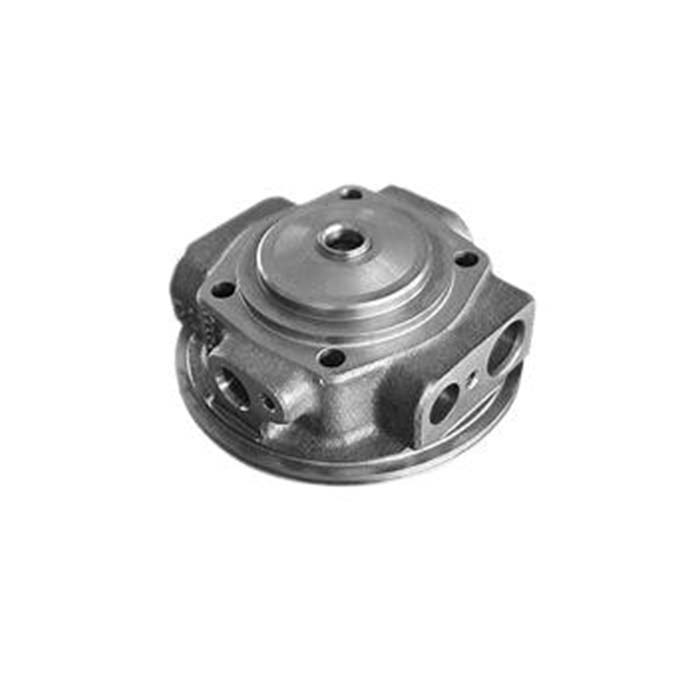

Turbocharger Bearing Housing

Turbocharger Bearing Housing for sale

Product Name:

Turbocharger Bearing Housing

Turbochargers improve engine's fuel efficiency and power output using exhaust gases from the engine to spin the turbine and force additional compressed air into the engine using a compressor.  Bearing housing links the turbine and the compressor and can cool down the heat transferred from the turbine.

Key Functions of a Turbocharger Bearing Housing

Support and Alignment:

The bearing housing holds the turbocharger's rotating assembly, which includes the turbine and compressor wheels, in proper alignment.

It ensures that the turbine and compressor wheels rotate smoothly and efficiently.

Bearing Support:

Inside the housing, there are bearings (either journal or ball bearings) that support the turbocharger shaft.

These bearings reduce friction and allow for high-speed rotation of the shaft.

Lubrication and Cooling:

The bearing housing is designed to facilitate the flow of lubricating oil to the bearings, reducing friction and wear.

In some designs, the housing also has passages for coolant to help dissipate heat generated during turbocharger operation.

Seal Provision:

The bearing housing contains seals to prevent oil from leaking into the exhaust or intake sides of the turbocharger.

Proper sealing is essential to maintain efficiency and prevent contamination of the intake air or exhaust gases.

Heat Dissipation:

The housing helps to manage and dissipate heat generated by the high-speed operation of the turbocharger.

Effective heat management is crucial for the longevity and performance of the turbocharger.

Construction and Materials

Materials: The bearing housing is typically made from cast iron, aluminum, or other heat-resistant materials that can withstand the high temperatures and pressures encountered in a turbocharger.

Design: It is precision-engineered to ensure proper fit and function, often incorporating cooling fins or other features to enhance heat dissipation.

Importance in Turbocharger Operation

The bearing housing is essential for the reliable and efficient operation of a turbocharger. A well-designed bearing housing ensures that the turbocharger can operate at high speeds and temperatures while minimizing wear and maintaining alignment. This, in turn, helps the engine to achieve better performance, fuel efficiency, and reduced emissions.

Maintenance and Replacement

Wear and Tear: Over time, the bearing housing and its internal components may wear out due to the harsh operating conditions.

Inspection: Regular inspection and maintenance are important to ensure the bearing housing and bearings are in good condition.

Replacement: If the bearing housing or bearings are damaged or excessively worn, they need to be replaced to prevent further damage to the turbocharger and engine.

What is turbocharger housing?

Turbocharger housing refers to the exterior casing or shell of the turbocharger that encloses its internal components. It generally consists of two main parts:

Compressor Housing:

Located on the intake side, it channels the incoming air into the compressor wheel.

Turbine Housing:

Located on the exhaust side, it directs exhaust gases through the turbine wheel to drive the compressor.

What is turbocharger bearing?

A turbocharger bearing is a crucial component that supports the turbocharger shaft, allowing it to spin at very high speeds with minimal friction. These bearings can be either journal bearings or ball bearings, and they facilitate the smooth rotation of the turbine and compressor wheels.

What is the housing of a bearing?

The housing of a bearing, also known as the bearing housing, is a structure that holds and supports the bearings within a machine. It maintains the alignment of the bearings and provides a secure enclosure that facilitates lubrication and protection against contaminants.

What materials are in turbo housing?

Turbo housings are typically made from materials that can withstand high temperatures and pressures, such as:

Cast Iron:

Commonly used for its durability and heat resistance.

Aluminum:

Often used for its lightweight properties and good thermal conductivity.

Stainless Steel:

Used for high-performance applications due to its strength and resistance to heat and corrosion.

How to choose turbo housing size?

Choosing the right turbo housing size involves considering the following factors:

Engine Size and Configuration:

Larger engines generally require larger turbo housings.

Desired Power Output:

Higher power outputs may need larger housings to accommodate greater airflow.

Boost Pressure and Response Time:

Smaller housings typically offer quicker response times but may limit peak power, whereas larger housings provide higher peak power but with a slower response.

Exhaust Gas Flow:

Match the turbine housing size to the exhaust gas flow characteristics of the engine.

How do you check a turbo bearing?

To check a turbo bearing, follow these steps:

Visual Inspection:

Look for signs of wear, scoring, or damage.

Axial and Radial Play:

Check for excessive movement by gently pushing and pulling the shaft in axial (back and forth) and radial (side to side) directions.

Spin Test:

Manually spin the turbo shaft and listen for unusual noises or roughness, indicating potential bearing issues.

Oil Inspection:

Check for oil leaks around the bearing housing, which could indicate seal or bearing problems.

What is the function of bearing housing in pump?

The bearing housing in a pump supports the pump shaft and holds the bearings that reduce friction and wear. It ensures the proper alignment of the shaft and helps to maintain smooth and efficient operation of the pump.

How many types of bearing housing are there?

There are several types of bearing housings, including:

Pillow Block Housings:

Mounted with a pillow block, they support a rotating shaft.

Flanged Housings:

Attached using a flange, typically mounted perpendicular to the shaft.

Take-Up Housings:

Allow for shaft adjustment and tensioning.

Split Housings:

Made in two halves for easy installation and maintenance.

What does a bigger turbo housing do?

A bigger turbo housing allows for a greater volume of air to flow through the turbocharger, which can lead to higher peak power output. However, it may also result in slower spool times (turbo lag), meaning it takes longer for the turbo to build up boost pressure.

What is a R in turbo housing?

The "R" in turbo housing typically refers to the A/R ratio (Area/Radius ratio), which is a measurement of the size of the turbine housing. It affects the turbocharger's performance characteristics, including boost threshold and efficiency. A higher A/R ratio generally results in better high-end power, while a lower A/R ratio improves low-end response.

What is center housing turbocharger?

The center housing, also known as the center housing rotating assembly (CHRA), is the core part of the turbocharger that includes the shaft, turbine wheel, compressor wheel, and bearings. It connects the compressor and turbine housings and contains the lubrication and cooling passages.

How are turbocharger housings made?

Turbocharger housings are typically made through casting processes such as:

Sand Casting:

A method where sand molds are used to form the housing shape.

Die Casting:

A process where molten metal is injected into a mold under high pressure. After casting, the housings are machined to precise specifications and may undergo additional treatments for durability and heat resistance.

What does a turbocharger compressor housing do?

The turbocharger compressor housing directs and compresses the incoming air, delivering it to the engine at a higher pressure. This increase in air density allows more fuel to be burned, resulting in greater engine power and efficiency.

Do turbos have bearings or bushings?

Turbos primarily use bearings to support the high-speed rotation of the shaft. These can be:

Journal Bearings:

Sleeve-type bearings that use a thin film of oil for lubrication.

Ball Bearings:

More advanced bearings that use balls to reduce friction and improve performance. Bushings, typically made of softer materials, are less common in turbochargers due to the extreme conditions they must withstand.
