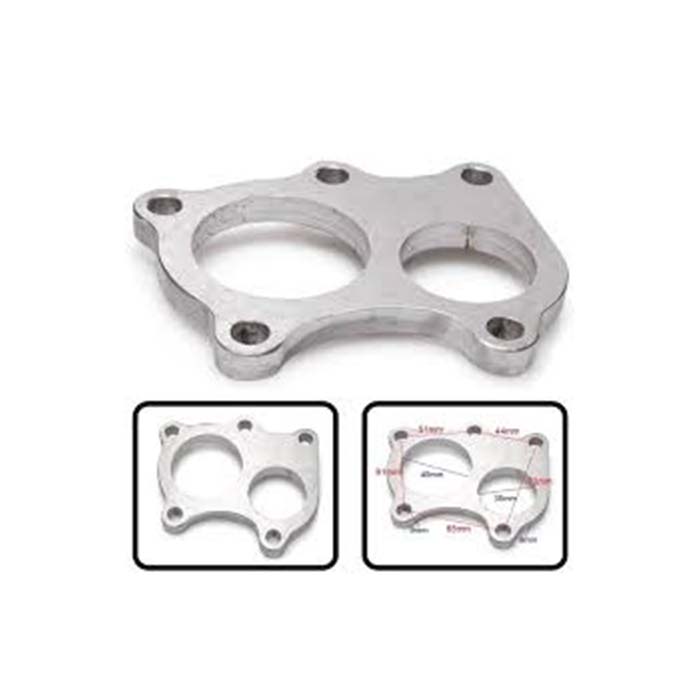

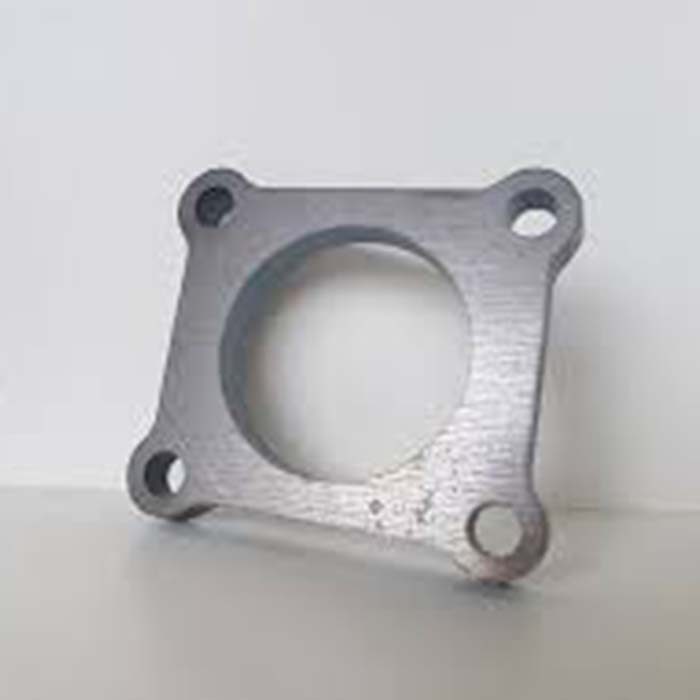

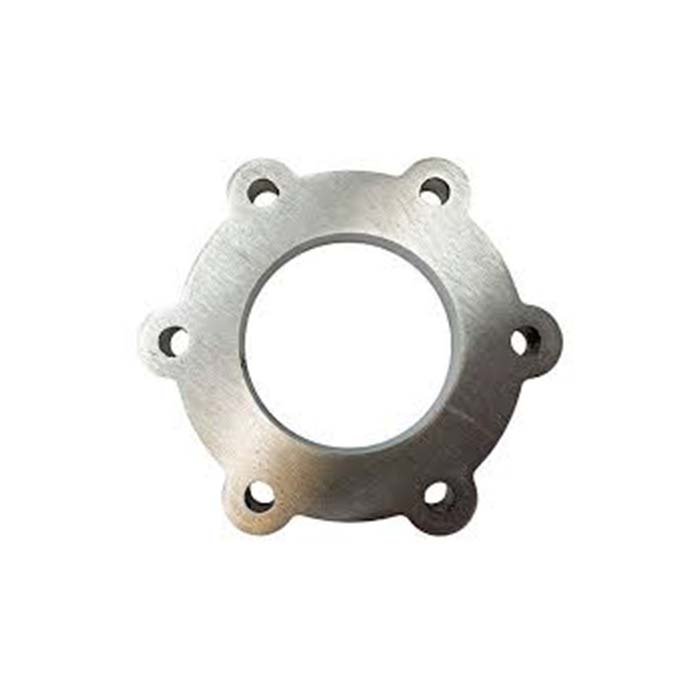

Turbine Housing Flange
A turbine housing flange is a component used in turbocharging systems to connect the turbine housing to other parts of the turbocharger or exhaust system. It serves as a critical interface ensuring a secure and tight connection, typically between the turbocharger and the exhaust manifold, downpipe, or other components.
Secure Connection: The flange provides a stable and secure connection point, preventing exhaust gases from leaking and ensuring optimal performance of the turbocharger.
Heat and Pressure Resistance: Given its proximity to the turbocharger and exhaust system, the flange must withstand high temperatures and pressures.
Material: Typically made from high-strength materials such as stainless steel or cast iron to endure harsh operating conditions.
Compatibility: Designed to match specific turbocharger models and configurations, flanges come in various shapes and sizes to ensure compatibility with different systems.
Sealing: Often used with gaskets or sealing rings to ensure a gas-tight seal and prevent exhaust leaks.

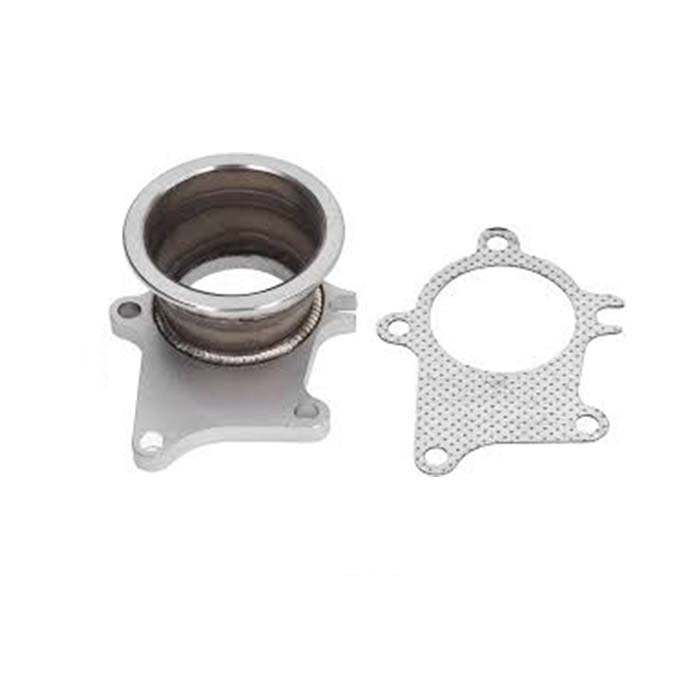

V-Band Flanges: Utilized for their quick release and secure sealing properties, often found in performance and racing applications.

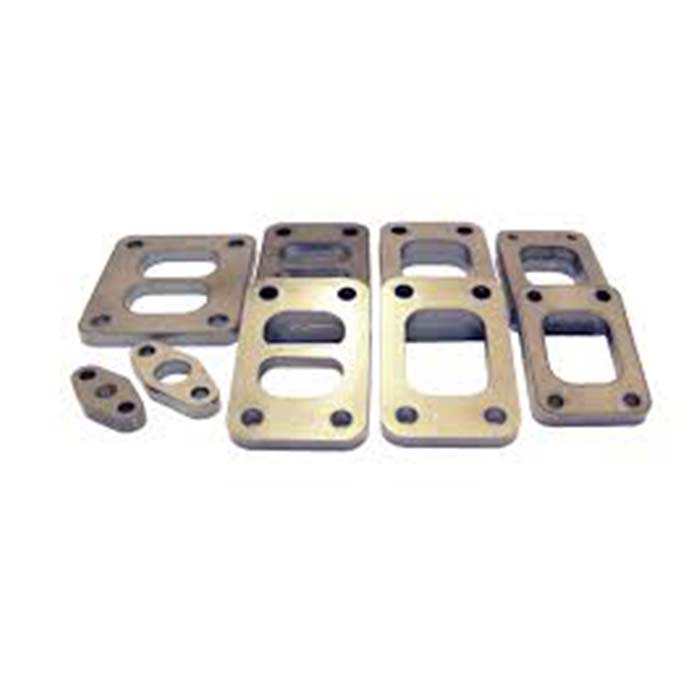

T3/T4 Flanges: Common in many turbocharger applications, with specific bolt patterns to fit respective turbo models.

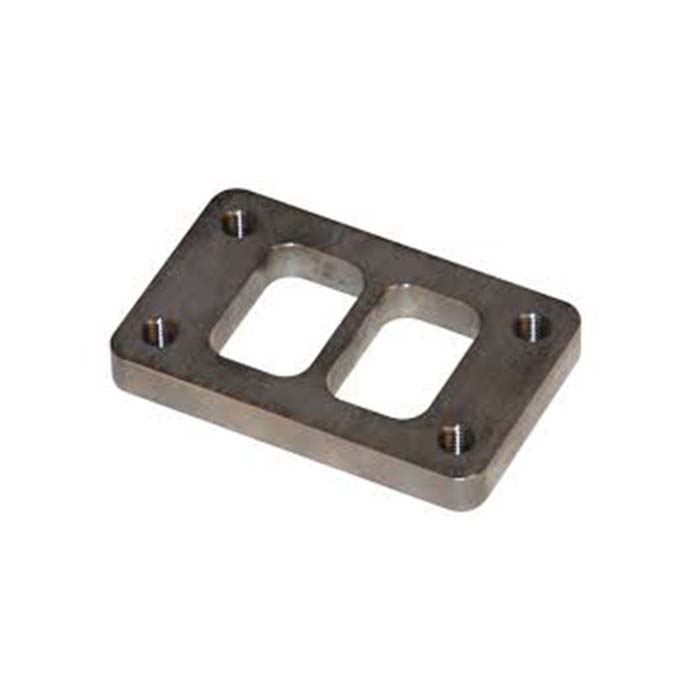

Divided (Twin-Scroll) Flanges: Designed for twin-scroll turbochargers to separate exhaust pulses for improved efficiency and performance.
Automotive: Most commonly used in car engines to connect the turbocharger to the exhaust manifold and downpipe.
Industrial: Used in various industrial engines and machinery where turbocharging is employed to boost performance and efficiency.
By ensuring a robust and leak-proof connection, the turbine housing flange plays a crucial role in the effective functioning of turbocharged systems.
Note: There are all kinds of turbocharger shells, models are complete, including various types and models. Which one do you need, you can contact us.
FAQ
A turbine housing flange is a component that connects the turbine housing of a turbocharger to other parts of the exhaust system, ensuring a secure and leak-proof connection.
Turbine housing flanges are typically made from high-strength materials such as stainless steel, cast iron, or alloy steels to withstand high temperatures and pressures.
They provide a stable and secure connection between the turbocharger and the exhaust system, preventing exhaust gas leaks and ensuring optimal turbocharger performance.
Common types include V-band flanges, T3/T4 flanges, and divided (twin-scroll) flanges, each designed for specific turbocharger configurations.
A V-band flange uses a clamp to secure the connection, offering a quick-release feature and a strong, leak-proof seal, commonly used in performance applications.
You need to match the flange to the specific bolt pattern and size of your turbocharger model and ensure it is compatible with your exhaust system.
Yes, turbine housing flanges can be used for both connections, but you must ensure the flange type and size are compatible with both components.
A twin-scroll flange is designed for twin-scroll turbochargers, which separate exhaust pulses from paired cylinders, improving efficiency and performance.
Often, yes. Gaskets or sealing rings are used to ensure a gas-tight seal between the flange and the connected components.
Yes, they are designed to withstand the high temperatures associated with exhaust gases in turbocharged systems.
Flanges made from stainless steel are resistant to rust and corrosion, while those made from cast iron or other materials may require coatings or treatments to prevent corrosion.
Installation typically involves aligning the flange with the turbocharger and exhaust component, securing it with bolts or a clamp, and ensuring a proper seal with a gasket.
Yes, as long as it is not damaged or excessively worn. However, gaskets should generally be replaced during reinstallation to ensure a proper seal.
T3 and T4 flanges refer to specific bolt patterns and sizes for different turbocharger models, with T4 flanges generally being larger to accommodate higher flow rates.
Regular inspections for signs of wear, cracks, or leaks, and ensuring bolts or clamps are securely fastened, will help maintain the flange.
No, it's essential to use a flange that matches the specific design and requirements of your turbocharger model to ensure a proper fit and seal.
Signs include exhaust gas leaks, unusual noises, a drop in turbocharger performance, or visible cracks or damage to the flange.
A divided flange helps to keep exhaust pulses from different cylinders separate, reducing turbo lag and improving spool time and overall efficiency.
Yes, manufacturers usually provide specific torque specifications for bolts or clamps to ensure a secure and leak-proof connection.
While possible, it requires precision and knowledge of the specific dimensions and materials needed. It's generally recommended to use professionally manufactured flanges to ensure reliability and performance.
