Product Description

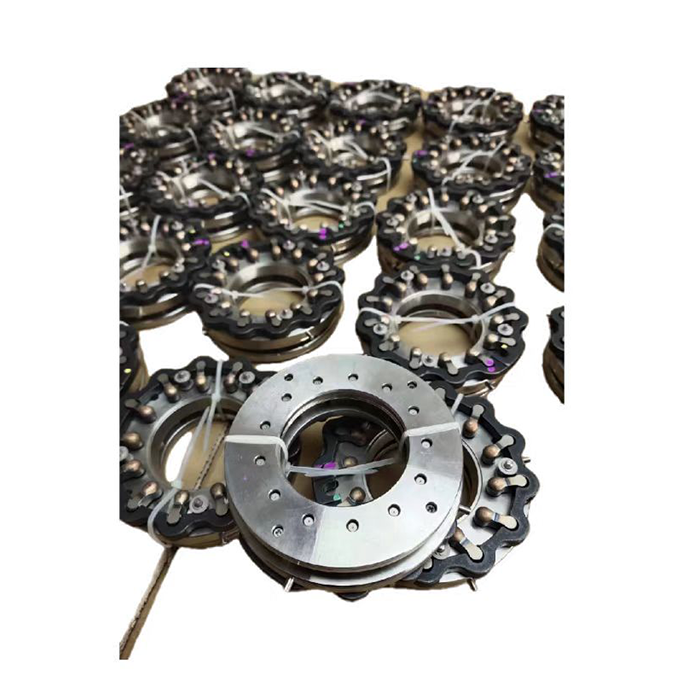

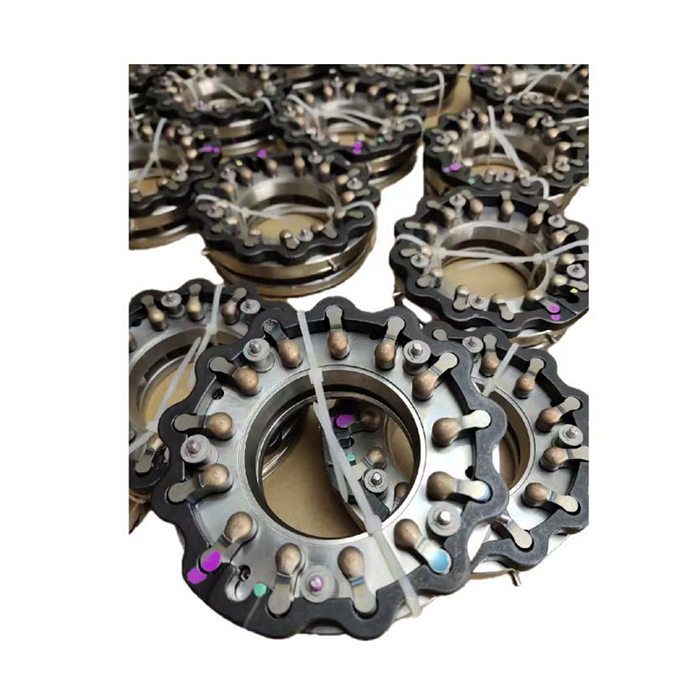

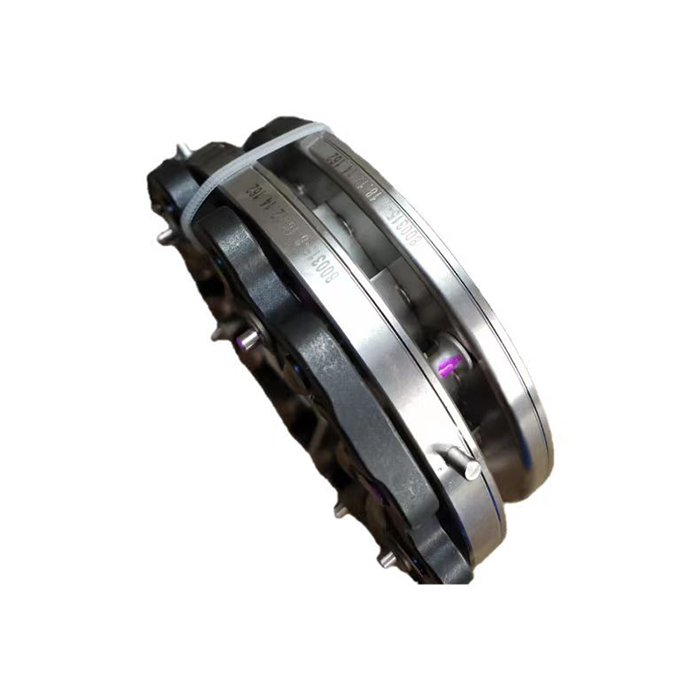

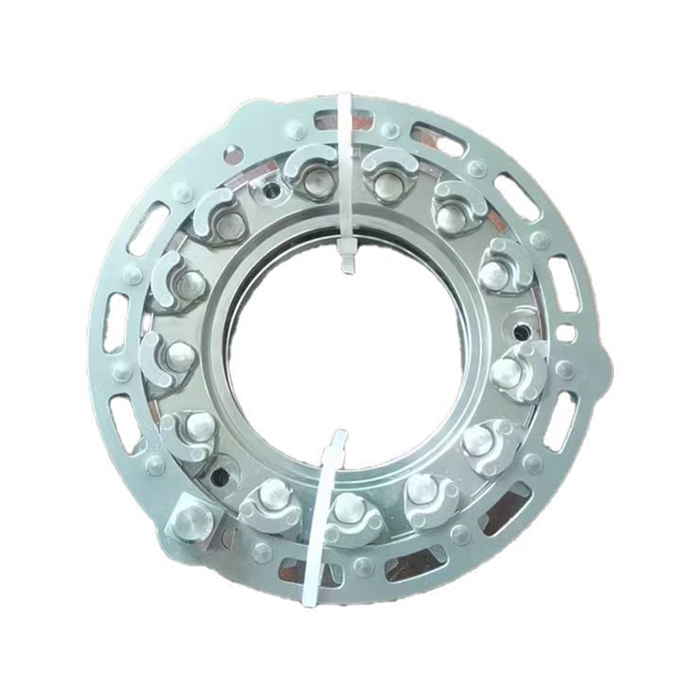

Nozzle Rings
A turbocharger nozzle ring, also known as a turbine nozzle ring or variable nozzle ring, is a crucial component in a variable geometry turbocharger (VGT). This device helps optimize the performance and efficiency of the turbocharger by adjusting the flow of exhaust gases onto the turbine wheel. Here’s a detailed explanation of turbocharger nozzle rings:
The nozzle ring consists of a series of vanes or blades that can change their angle to vary the flow of exhaust gases entering the turbine. This adjustability allows for optimal performance at different engine speeds and loads.
By directing the exhaust gases more effectively, the nozzle ring helps improve the turbocharger's efficiency, providing better boost control and reducing turbo lag.
Variable nozzle rings enable the turbocharger to maintain an optimal boost pressure across a wider range of engine speeds. This leads to improved engine performance, especially at low speeds where traditional turbochargers might struggle.
By optimizing the turbocharger's performance, nozzle rings contribute to more complete combustion, which helps in reducing harmful emissions.
FAQ
We have pre-sale, sale, after-sales perfect service system
We can provide you with all the models you need, all OE genuine
Our experienced sales will give you the best suggestions and save you time.
Professinal engineer design and produce.
All the products will be strictly tested anf checked before shipping.
The nozzle ring contains adjustable vanes that change their position based on the engine’s requirements. At low engine speeds, the vanes close to create a narrow passage, accelerating the exhaust gases and increasing the turbine speed quickly. At high engine speeds, the vanes open to allow more exhaust gas flow, preventing excessive boost and maintaining efficiency.
The position of the vanes is controlled by an actuator, which can be either vacuum-operated, hydraulic, or electronic. The actuator receives signals from the engine control unit (ECU) to adjust the vanes based on real-time engine data.
The ability to adjust the exhaust gas flow quickly means the turbocharger can respond faster, reducing the lag time between throttle input and boost delivery.
By maintaining optimal boost pressure, nozzle rings help improve the engine's fuel efficiency, especially under varying load conditions.
Variable geometry provided by the nozzle ring ensures that the engine performs well across a broader range of RPMs, enhancing overall driving experience.
Properly functioning nozzle rings can help extend the life of the turbocharger by ensuring that it operates within its optimal parameters, reducing stress on the turbo components.
Over time, the nozzle ring and its vanes can wear out due to high temperatures and pressures, leading to decreased performance or failure.
Accumulation of carbon deposits can hinder the movement of the vanes, affecting the performance of the nozzle ring and, consequently, the turbocharger.
Regular maintenance and inspection can help detect issues early and ensure that the nozzle ring continues to function effectively.
Turbocharger nozzle rings are an essential part of modern turbochargers, especially those with variable geometry. They play a vital role in optimizing engine performance, efficiency, and emissions by precisely controlling the flow of exhaust gases onto the turbine wheel.
A turbocharger nozzle ring, also known as a turbine nozzle ring or variable nozzle ring, is a component in a variable geometry turbocharger (VGT). It consists of adjustable vanes that control the flow of exhaust gases onto the turbine wheel, optimizing turbocharger performance and efficiency.
The nozzle ring adjusts the angle of its vanes based on engine conditions. At low speeds, the vanes narrow the passage to accelerate exhaust gases and increase turbine speed quickly. At high speeds, the vanes open to allow more exhaust gas flow, preventing excessive boost and maintaining efficiency.
Benefits include reduced turbo lag, improved fuel efficiency, enhanced engine performance across a wide RPM range, and better emission control due to more complete combustion.
The nozzle ring is controlled by an actuator, which can be vacuum-operated, hydraulic, or electronic. The actuator adjusts the vanes based on signals from the engine control unit (ECU), responding to real-time engine data.
Yes, a faulty nozzle ring can lead to reduced engine performance, increased turbo lag, poor fuel efficiency, and higher emissions. It can also cause the turbocharger to operate outside its optimal parameters, leading to potential damage.
Symptoms include reduced power, increased turbo lag, excessive exhaust smoke, unusual noises from the turbocharger, and diagnostic trouble codes related to boost pressure or turbocharger efficiency.
It is recommended to inspect the nozzle ring during regular maintenance intervals, such as during oil changes or other scheduled services. Regular inspection helps detect wear, tear, and carbon build-up early, ensuring optimal performance.
Yes, a nozzle ring can often be cleaned, especially if carbon build-up is the issue. In some cases, it may be possible to repair or replace individual components. However, if the damage is extensive, replacing the entire nozzle ring may be necessary.
Common causes of failure include wear and tear due to high temperatures and pressures, carbon build-up, lack of proper maintenance, and mechanical damage from foreign objects in the exhaust system.
