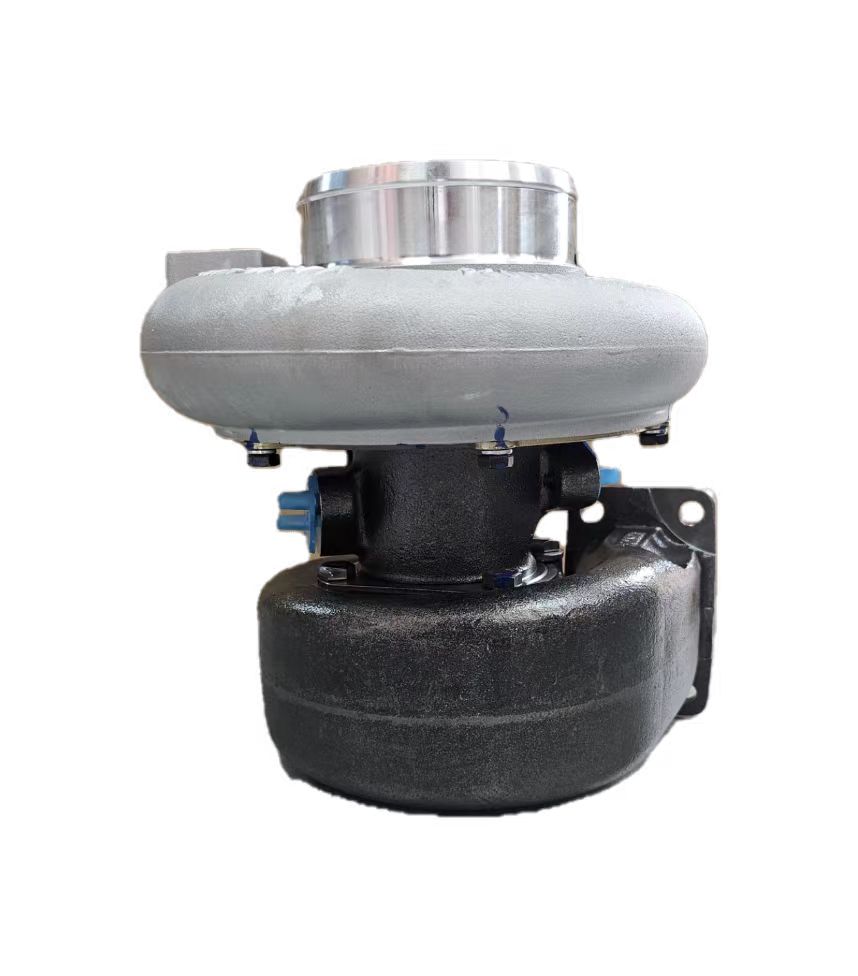

Dump Truck Turbo Size-How To Choose The Right Turbo for Construction Use

When distributors and fleet owners purchase turbochargers for dump trucks, many either chase rock-bottom purchasing prices or simply name a vehicle model and ask straight away, “Do you have stock?”



The inevitable outcome? Within just two months of fitting the turbo, vehicles suffer from sluggish power and weak hauling capacity, or suffer oil leaks and breakdowns mid-journey. Most immediately blame poor product quality, yet with decades of industry experience, we can state with certainty: over 70% of dump truck turbo failures stem not from defective manufacturing, but from improperly matched specifications.



Dump trucks operate under entirely different conditions from passenger cars and standard logistics trucks. Constantly working construction sites, hauling muck, and climbing steep gradients, they endure dusty, bumpy, high-temperature working environments that demand turbochargers far more durable and precisely matched than those for ordinary vehicles—requirements ten times stricter by comparison. Drawing on real-world experience as foreign trade practitioners, this article breaks down the full logic of dump truck turbocharger selection to help you steer clear of costly procurement pitfalls.



 First, Understand Why Dump Trucks Cannot Function Without Properly Matched Turbos

A common misconception prevails: a turbo is merely a simple air-blower component, and any unit that spins and matches the model number will work. This flawed mindset is the root cause of most misselection disasters.



Dump trucks feature large-displacement engines and operate under constant heavy loads. Fitting a mismatched turbo is akin to forcing a strong adult to run while wearing a child’s face mask—restricted airflow saps all power output. To select the right turbo, you must first grasp the brutal operational strains of construction site work, alongside the tangible financial losses caused by ill-fitting units.



 How Construction Site Conditions Accelerate Turbo Wear

Anyone who has visited muck yards or mining sites knows the operating conditions are a nightmare compared to paved highways: thick dust cuts visibility to mere meters, cratered, uneven roads create constant violent vibration, and summer direct sunlight pushes under-hood temperatures high enough to fry an egg.



Turbochargers designed for highway use feature thinner impeller blades and bearings calibrated for milder conditions. Dust rapidly abrades internal components; persistent jolts loosen internal fittings; high heat accelerates seal degradation—all leading to oil leaks and gradual power loss.



Our export after-sales data confirms that seven out of ten dump truck turbo failures arise from mismatched specifications and inadequate environmental adaptability. Take a straightforward example: installing a plain flatland turbo on a heavy-duty dump truck operating in mountainous terrain fails to supply sufficient intake air, forcing the engine to run under constant overload. The turbo spins at excessive RPMs with sustained overheating, cutting its service life in half.



 Mismatched Turbos Bring Losses Far Beyond Component Cost

Many buyers opt for cheap non-standard turbos to cut upfront procurement costs, yet the hidden subsequent losses vastly outweigh the initial price difference.



One long-term client based in the Middle East previously sourced a batch of low-cost, incorrectly sized turbos to reduce expenses. After installation, the trucks suffered severe power loss: each load that once hauled 20 cubic meters of muck now required two trips, with fuel consumption rising by an additional 15%. Monthly cost calculations revealed the extra fuel and labor expenses alone could have covered three fully compliant industrial-grade turbochargers.



In the construction sector, downtime equals lost revenue. A single day of vehicle breakdown due to turbo failure incurs thousands of dollars in site downtime and labor fees. Frequent malfunctions among end-user fleets also trigger returns and negative reviews, permanently damaging your local market reputation. For cross-border procurement, the priority ranking always stands as: site compatibility > durability and stability > price competitiveness.



 Core Turbo Selection: Master These 3 Mandatory Specifications to Avoid 80% of Pitfalls

Do not be intimidated by complex technical parameters. When choosing turbos for industrial dump trucks, focusing on three core hard indicators—impeller dimensions, housing material, and bearing system—eliminates most compatibility failures. This framework works equally well for bulk wholesale procurement and individual end-user fitting.



 Impeller Dimensions: Both Oversizing and Undersizing Cause Malfunctions

The impeller, a fan-shaped core component responsible for delivering compressed air to the engine, dictates intake volume and serves as the primary selection benchmark.



 Match Impeller Size to Engine Displacement and Payload

This error-free matching method relies on engine displacement and routine hauling weight:

- Small-displacement 6–8L engines + light loads of 10–15 tons: 40–45mm diameter impellers are required. Undersized impellers restrict airflow and suffocate engine power; oversized impellers create excessive exhaust resistance, resulting in turbo lag and weak takeoff performance.

- Large-displacement 10–13L engines + heavy loads of 20–30 tons: 50–55mm large impellers are mandatory. One African client fitted a 42mm small impeller to a 12L large-displacement engine, leading to thick black exhaust smoke while climbing gradients. The turbo spun at 180,000 RPM—exceeding its 150,000 RPM safety threshold—and failed completely within one week.



 Blade Profile and Coatings for Specialized Working Conditions

For dusty construction sites, prioritize cast aluminum impellers with dust-resistant coatings, offering three times greater wear resistance than standard aluminum alternatives. For mountainous operations, backward-curved blades deliver superior impact resistance, resisting deformation under constant road vibration for consistent long-term performance.



 Turbo Housing Material: Determines Heat and Vibration Resistance

Most buyers fixate on impellers while overlooking the turbo housing, the protective outer casing. Even premium internal components underperform if paired with substandard housing materials.



 Housing Material Comparison: Cast Iron vs. Cast Steel

- Standard flatland construction sites: HT250 cast iron housings offer efficient heat dissipation and cost-effectiveness, fully meeting regular operational demands.

- High-temperature mining zones and desert regions (Middle East / Australia): Ductile iron or cast steel housings are non-negotiable. Test data shows standard cast iron deforms and cracks at 700°C, while cast steel withstands temperatures up to 900°C. A Saudi client previously reported mass housing cracking during summer site surface temperatures of 50°C; switching to cast steel housings eliminated all identical failures.



 Twin-Volute Housings Are Recommended

Dump trucks frequently perform heavy-load takeoffs and low-speed hill climbs, making twin-volute turbocharger housings our universal recommendation. Dual exhaust channels concentrate exhaust gas to strike the impeller more forcefully, drastically boosting low-end torque for perceptibly stronger takeoff power and smoother hill climbing—perfectly aligned with industrial vehicle operating characteristics.



 Bearing System: Defines the Turbo’s Maximum Service Life

Bearings act as the turbo’s rotating joints, operating under hundreds of thousands of RPMs and hundreds of degrees Celsius. Bearing selection directly determines total turbo lifespan. Follow this core rule: fully floating bearings as the baseline, ceramic ball bearings as the upgraded premium option.



 Fully Floating Bearings: Cost-Effective Industry Standard

Fully floating bearings suffice for most standard dump trucks. Oil film cushioning absorbs vibration, delivering strong impact resistance suited to bumpy, complex construction terrain. Critical reminder: always install high-pressure oil pipes with integrated filters to trap iron filings and dust that jam bearings—the leading cause of assembly-related failures.



 Ceramic Ball Bearings: For Extreme Heavy-Duty High-Temperature Operations

For mining dump trucks hauling over 40 tons of payload, upgrade to ceramic ball bearings. Their maximum safe RPM is 30% higher than metal bearings, with superior heat and wear resistance extending service life by 2–3 times. Though 20% more expensive upfront, they cut recurring component replacement and costly downtime for superior long-term operational value.



 Three Plug-and-Play Custom Selection Schemes for Common Working Conditions

Drawing on years of experience supporting clients across Southeast Asia, Africa, the Middle East, and Australia, we have compiled ready-to-use selection frameworks for the three most prevalent industrial operating scenarios—simply match your working environment for hassle-free selection.



 Urban Muck Haulers: Dust Protection + Low-Range Torque

Typical operating conditions: short-distance transfers within city construction zones, frequent start-stop cycles, heavy dust, speed limits, 15–25 ton payloads

Recommended specifications:

- Impeller: 45–48mm coated dust-resistant cast aluminum impeller

- Housing: HT250 cast iron twin-volute housing with built-in exhaust dust screen

- Bearings: Reinforced fully floating bearings paired with 100-mesh oil inlet filter



Critical pitfall warning: Never fit oversized impellers! Urban operations do not require high-RPM power; large impellers amplify turbocharger lag, creating sluggish, unresponsive acceleration. One Southeast Asian client mistakenly installed 52mm large impellers, leading to constant complaints from drivers. Switching to 48mm impellers resolved all issues instantly.



 Mountain Mining Dump Trucks: Heavy-Duty Build + High Torque + Altitude Adaptation

Typical operating conditions: gradients steeper than 30°, cratered mountain roads, elevations 1,000–3,000 meters, 30–50 ton payloads

Recommended specifications:

- Impeller: 52–55mm backward-curved forged aluminum impeller (anti-deformation impact resistance)

- Housing: 2mm thickened ductile iron twin-volute housing

- Bearings: Water-cooled ceramic ball bearings



Critical pitfall warning: Altitude compensation is mandatory for highland sites! Air density drops by 10% per 1,000 meters of elevation gain, triggering insufficient intake air and unregulated turbo overspeeding. Turbos fitted with wastegate valves are required for these environments to automatically adjust exhaust flow and protect the full assembly.



 High-Temperature Desert Regions: Heat Resistance + Dust Prevention

Typical operating conditions: year-round temperatures above 40°C, frequent sandstorms, soft gravel terrain (predominantly Middle East and North Africa)

Recommended specifications:

- Impeller: 50–53mm anodized aluminum impeller (anti-sand erosion)

- Housing: 900°C heat-resistant cast steel housing fitted with cyclone dust hood

- Bearings: Double oil-filter fully floating bearings (blocks dust from entering lubrication systems)



Critical pitfall warning: Heat dissipation is the top priority for desert operations. Opt for turbos with water-cooled central housings, lowering bearing operating temperatures by over 30°C. After adopting this setup, one Dubai client extended average turbo service life from 3 months to 14 months, driving sharp growth in repeat orders from end-user fleets.



After over a decade in turbo foreign trade, we firmly believe we sell far more than metal components—we deliver operational reliability that keeps dump trucks working and minimizes costly downtime. For overseas distributors, properly matched turbos cut after-sales costs and solidify local market credibility. For end-user fleets, correctly sized turbos represent a core tool for slashing overall operating expenses.



If you have questions regarding turbo selection, specification matching, bulk procurement, or require customized solutions tailored to your local working conditions, feel free to reach out to us anytime.
