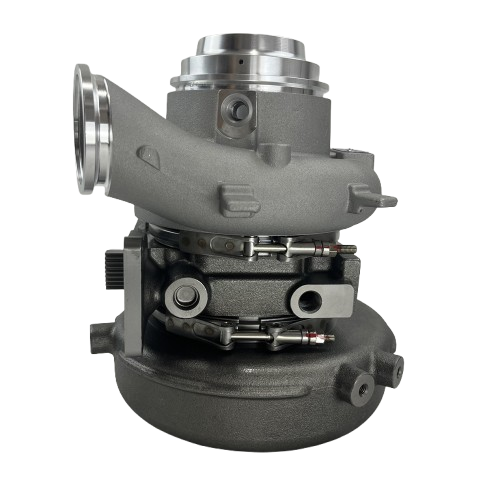

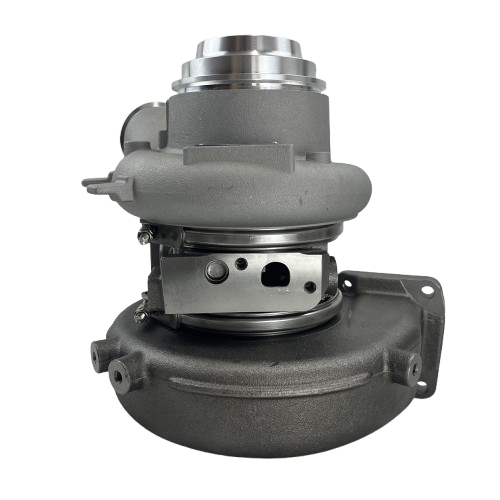

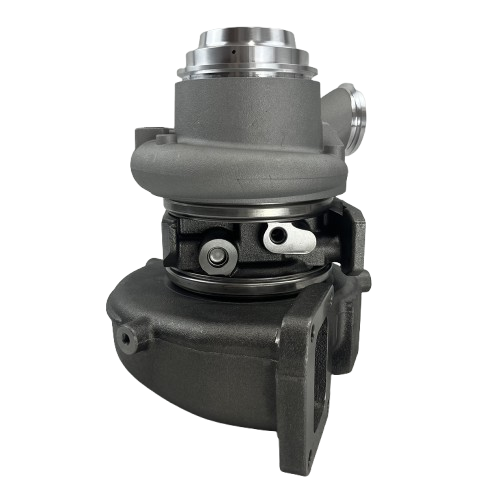

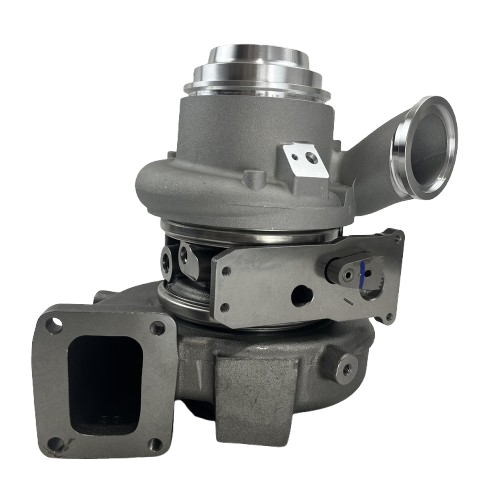

HE400VG
Alfredturbo
5551141 5601245 5551140 5602146 701425AT 5602145RX 5602145 5602145NX
5602145PX 5609888 5609888NX 5609888RX 6395630 6395630NX 6395630RX
7 days
60000/ per month
Product Description
We have pre-sale, sale, after-sales perfect service system
We can provide you with all the models you need, all OE genuine
Our experienced sales will give you the best suggestions and save you time.
Professinal engineer design and produce.
All the products will be strictly tested anf checked before shipping.
FAQ
We have pre-sale, sale, after-sales perfect service system
We can provide you with all the models you need, all OE genuine
Our experienced sales will give you the best suggestions and save you time.
Professinal engineer design and produce.
All the products will be strictly tested anf checked before shipping.
VGT stands for Variable Geometry Turbocharger. It is also commonly referred to as VNT (Variable Nozzle Turbo) in the industry.
By installing a ring of angle/position-adjustable guide vanes inside the turbine, it changes the cross-sectional area of the turbine inlet passage in real time according to engine speed and load, so as to achieve optimized supercharging under all operating conditions. Its core value is to eliminate turbo lag and balance low-speed response with high-speed power.
The VGT controls the movement of the guide vanes via the ECU to change the A/R ratio (Area/Radius ratio) of the turbine housing:
Vaness close → exhaust passage narrows → exhaust flow speed increases → turbo builds boost quickly → almost no lag.
2. Medium engine speed
Vaness open gradually → balances boost pressure and exhaust back pressure → smooth and linear power output.
3. High engine speed
Vaness fully open → maximum passage area → reduces exhaust resistance → prevents turbo overspeed and delivers high power.
1. Almost eliminates turbo lag, making starting and low-speed acceleration more responsive.
2. Achieves high-efficiency supercharging over the full speed range, with more linear power and a wider usable speed range.
3. Improves low-speed torque (typically by 20%–50%), resulting in stronger performance under heavy load and climbing.
4. Reduces fuel consumption by lowering exhaust back pressure and pumping losses.
5. Lowers emissions and better meets stringent regulations such as China 6 and Euro 6.
6. Most designs can eliminate the need for a wastegate, resulting in a simpler system.
